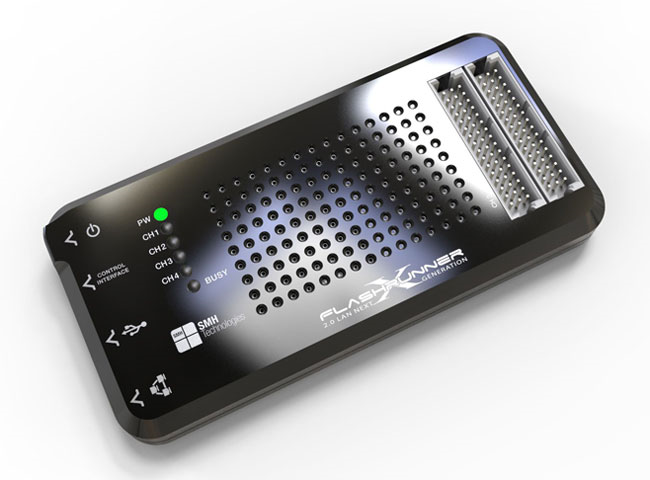

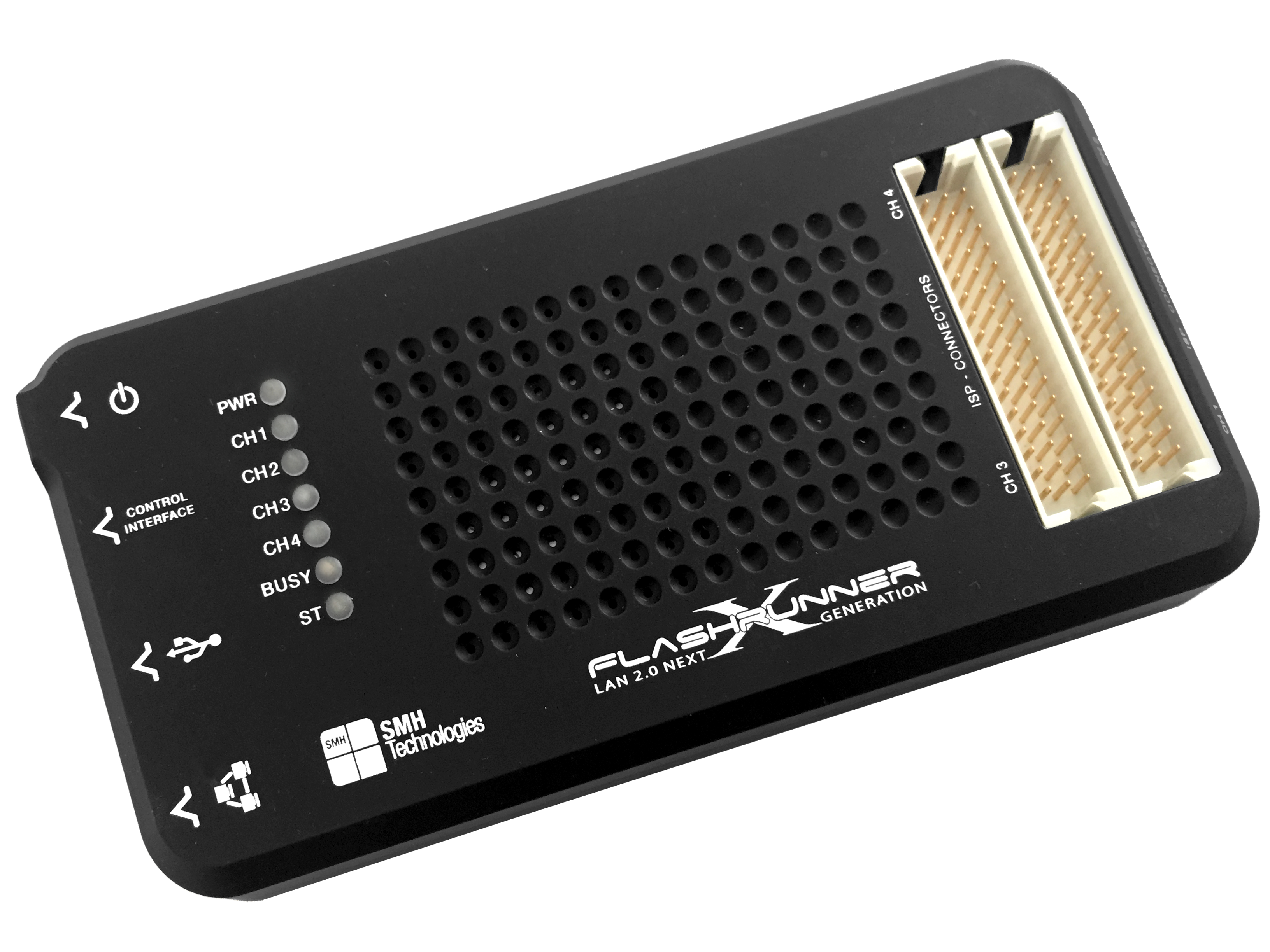

FlashRunner LAN 2.0 NXG

  • universal ISP programmer based on a 1-channel core, upgradeable in programming way up to 4 channels, marked with catalog numbers:
    • FRLAN2P0NXG-0xCH-rr
    where:
    • x – number of channels (1, 2, 3, 4);
    • rr – extension (CS, OF);

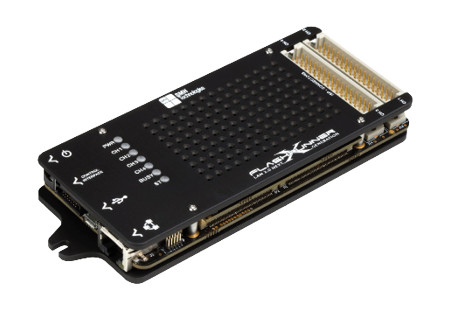

  • compact design 140 x 70 x 18 mm closed in aesthetic housing (rr=CS) or as open frame (rr=OC);
  • FlashRunner 2.0 technology;
  • over 6.000 supported devices;
  • programming algorithms offered separately;
  • unit for integration within ATE;
  • interfaces: LAN (1Gbit/s), USB 2.0 optoisolated;
  • stand-alone and remotely controled by PC modes;
  • power supply 15V DC (not included);
  • support of most ISP protocols (BDM, JTAG, SPI, I2C, MON, ICC, SCI, UART);

More about FlashRunner LAN 2.0 NXG

FlashRunner LAN 2.0 NXG UPGRADE

The available upgrades for the FlashRunner LAN 2.0 NXG series programmers allow you to increase at any time the number of channels from any number to any up to 4. Upgrades are marked in a catalog as follows

  • UPK0x-0yCH
where:
  • x – number of existing channels (1, 2, 3);
  • y – expected number of channels(1, 2, 3);
More about FlashRunner LAN 2.0 NXG

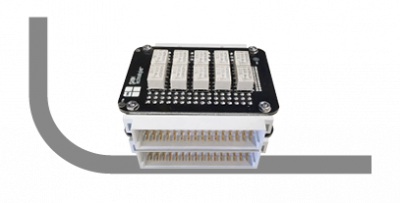

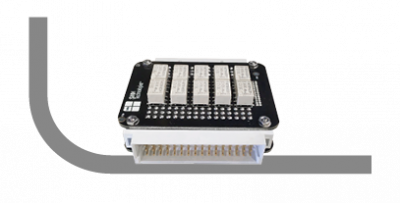

FlashRunner LAN 2.0 NXG Relay Barriers

For the FlashRunner LAN 2.0 NXG, as an accessories, following external relays barriers are offered:

  • FRLAN2P0NXGRB02 – for 1 or 2 channels;
  • FRLAN2P0NXGRB04 – for 3 or 4 channels;

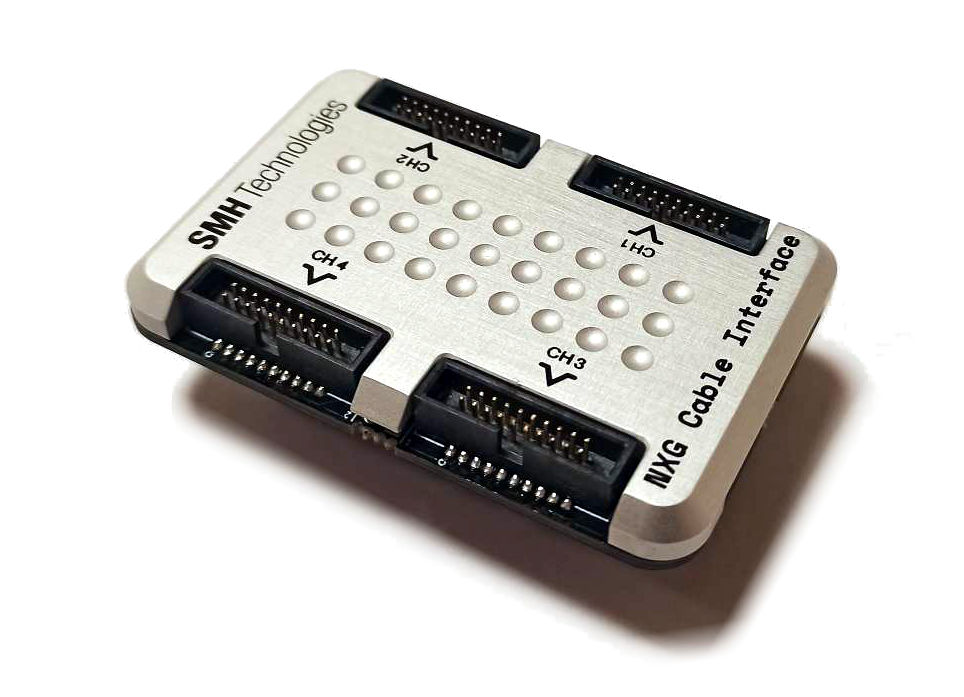

FlashRunner LAN 2.0 NXG Cable Interface

For the FlashRunner LAN 2.0 NXG, as an accessories, 4 channel cable interface is offered:

  • FRNXGINTF04 – for 4 channels;



FlashRunner LAN 2.0 NXG Algorithms

For FlashRunner LAN 2.0 NXG series licenses for programming algorithms for particular devices are offered separately as:

  • Single licenses:
    • PA2P0NXG0 - single Programming Algorithm for maximum 4-channel programmers for standard mass market device
    • PA2P0NXGNM - single Programming Algorithm for maximum 4-channel programmers for specialized no mass market device
  • Credits:
    • PA2P0NXG-01 - five free of choice Programming Algorithms for maximum 4-channel programmers for standard devices to be download within one year since the invoice date
    • PA2P0NXG-02 - ten free of choice Programming Algorithms for maximum 4-channel programmers for standard devices to be download within one year since the invoice date
    • PA2P0NXG-03 - fifteen free of choice Programming Algorithms for maximum 4-channel programmers for standard devices to be download within one year since the invoice date
  • Packages:
    • PA2P0NXGGEN - Programming Algorithms for maximum 4-channel programmers for all currently supported standard devices from all supported silicon vendors
    • PA2P0NXGxxx - Programming Algorithms for maximum 4-channel programmers for all currently supported standard devices from selected silicon vendor

There is also useful system software available that can be downloaded from web (icon on the right margin).

FlashRunner LAN 2.0 NXG UPDATE

There are following algorithms’ updates available:

  • PA2P0NXGAMP-SCP - update PA2P0NXGxxx for the selected semiconductor vendor;
  • PA2P0NXGAMP-GEN – update of all algorithms PA2P0NXGGEN;
